A Modern Pin-Tail for Everyone
The Pin Tonic is a modern pin-tail built for riders of all sizes, not just the tall ones. Designed to feel as quick and nimble as a shorter board while keeping the benefits of added length, it offers stability, extra surface area, and effortless float. From powder fields to groomer cruising, it delivers smooth turns with longboard style for everyone.
- Delivered in 5-10 working days
- Supports 1% for the planet
- 2 year warranty
Personality
The Details

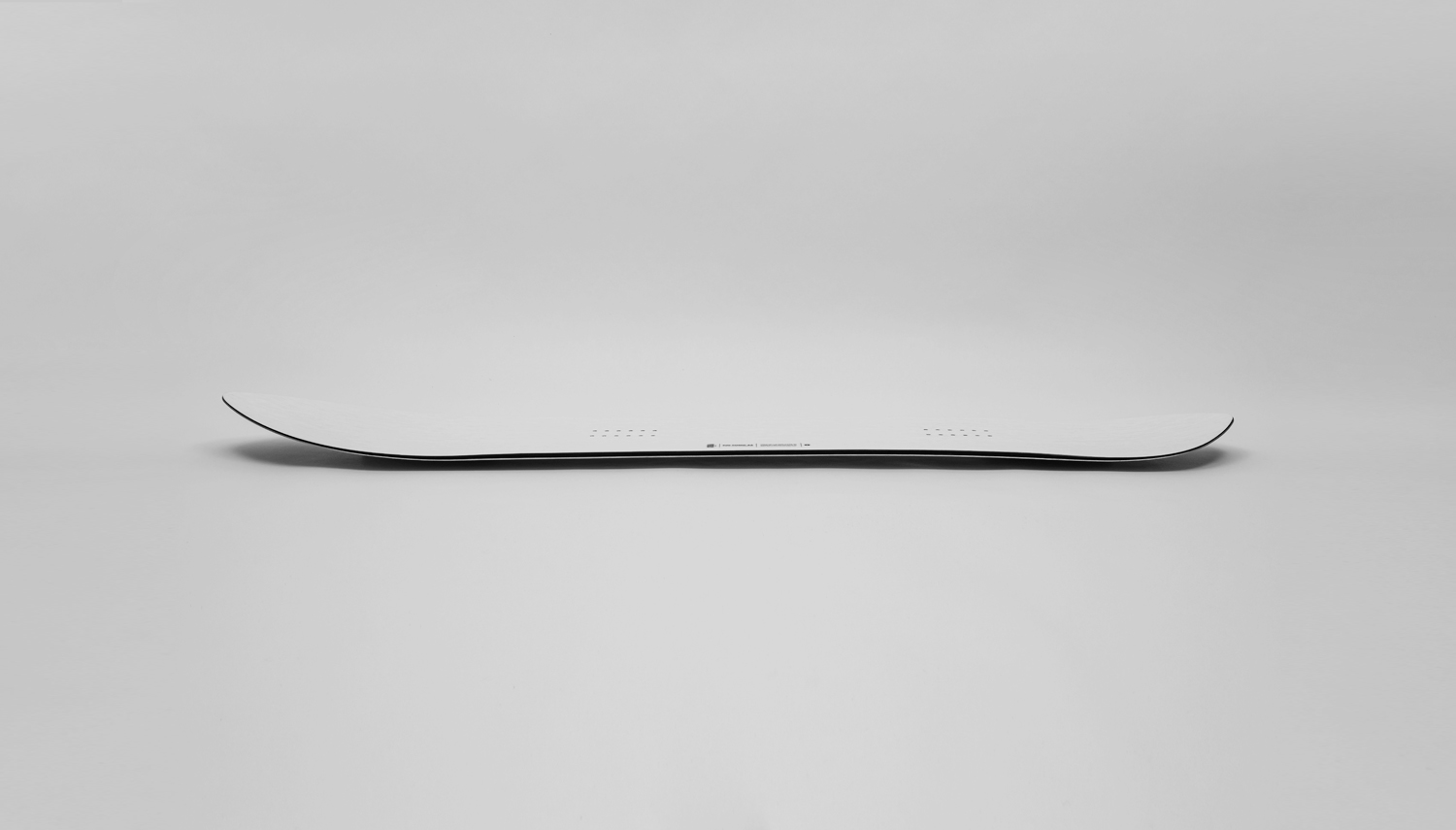

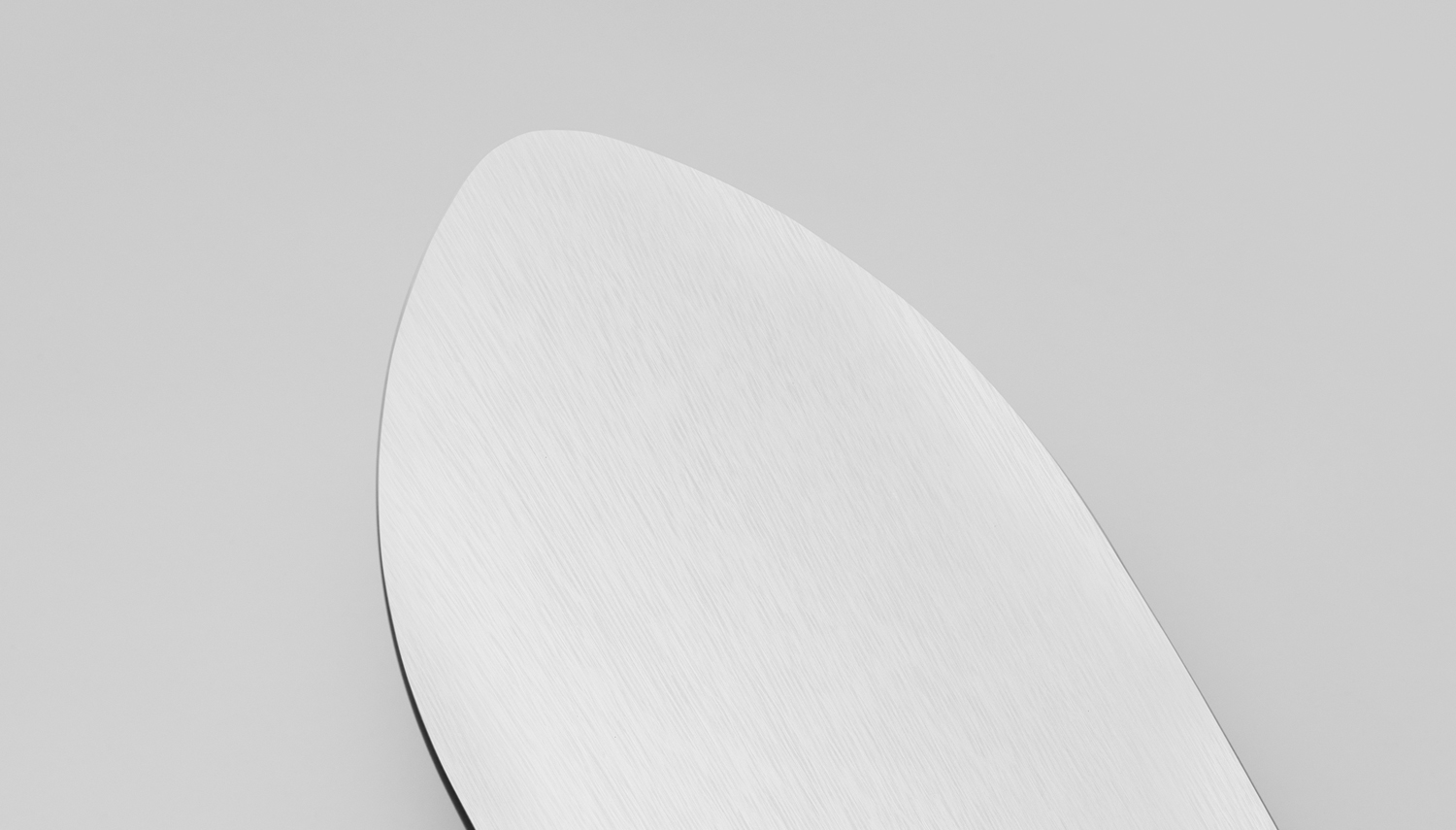

The Pin Tonic features our FLOAT CAMBER, which curves into a rocker shape in the nose. This profile helps you stay on top in deep powder while maintaining speed throughout the turn. The camber under-foot offers grip and stability on hard-pack and in variable conditions, while the early rise in the nose allows for an easy initiation of turns.
| Length (cm) | 159 | 164 | 166 | 172 |
| Effective Edge (mm) *A* | 1130 | 1200 | 1200 | 1260 |
| Running Length (mm) | 990 | 1060 | 1050 | 1120 |
| Nose Width (mm) *B* | 308 | 324 | 321 | 332 |
| Waist Width (mm) *C* | 260 | 269 | 268 | 276 |
| Tail Width (mm) *D* | 282 | 293 | 293 | 302 |
| Avg. Sidecut Radius (m) | 8.2 | 8.2 | 8,4 | 8.6 |
| Setback (mm) | 35 | 35 | 35 | 35 |
| Taper (mm) | 26 | 28 | 28 | 28 |
| Recommended Stance (cm) | 55 | 55 | 55 | 55 |
| Adjust. Stance Range (cm) | 49-61 | 49-61 | 49-61 | 49-61 |
| Board Weight (kg) | Brushed: 2,8 | Gloss: 2,9 | Brushed: 3,1 | Gloss: 3,4 Brushed: 3,3 |
| Rider Weight (kg) | 30-50 | 60-90 | 60-90 | 65-95 |
| Switch Riding | No Problem | No Problem | No Problem | No Problem |
Construction Highlights
Poplar Light Wood Core
Lightweight yet durable, delivering a lively flex and steady response in all snow conditions.
Biaxial Fiberglass
Creates a balanced ride with dependable edge hold and smooth torsional control.
Premium Sintered Base
A proven industry standard that ensures durability, reliable speed, and long-lasting glide.
This chart shows the range in what each size can handle. It is never our intention to categorize riders and their preferences. Our philosophy of snowboarding is to try new shapes, lengths, widths, and to keep an open mind for alternative riding experiences; however, we do have some limits to consider so that your board will work as it was designed to.
Your weight plays a major role in how the board will flex, and your shoe size will affect toe and heel drag when turning. The below size chart is for reference only, as our recommendations may vary depending on your stance and riding ability.
Pin Tonic
| Size (cm) | Max Boot Size (EU) | Max Boot Sole Length (cm) | Rider Weight Range (kg) | Max Rider Height (cm) |
| 164 | 46 | 31.4 cm | 60 - 95 kg | 195 cm |
| 172 | 49 | 32.3 cm | 65 - 95 kg | 195+ cm |
Rider References
Lino Sleegers – Pin Tonic 164,
Height & Weight: 175cm, 71kg
Boot size & Stance: EU 42,5 / US 9, regular, +21 / +9, width 53
Bindings: Union Atlas / Union Expedition
Thomas Stöckli – Pin Tonic 172,
Height & Weight: 171cm, 70kg
Boot size & Stance: EU 43 / US 9 goofy, +27 / +12, width 50cm
Bindings: Union, Flux, Spark
Geoff Brinkhaus – Pin Tonic 172,
Height & Weight: 189cm, 82kg
Boot size & Stance: EU 44,5 / US 11, regular, +24 / +3, width 55
Bindings: Union Strata
